Plating Jig Fixtures

Electroplating fixtures, also known as jigs, are essential tools used in the electroplating process to hold, position, and support parts during plating. These fixtures ensure that the components being plated receive an even and uniform coating. The design and material of the fixtures can significantly impact the quality of the plating and the efficiency of the process.

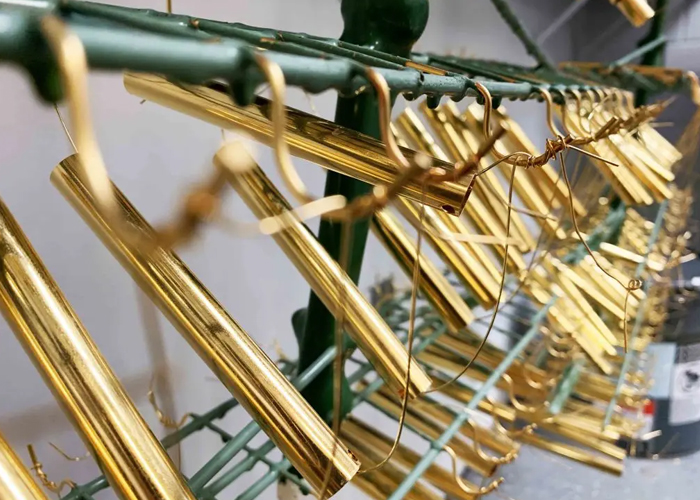

Custom Fixtures

Designed for specific parts to ensure a perfect fit and optimal plating results.

Know More

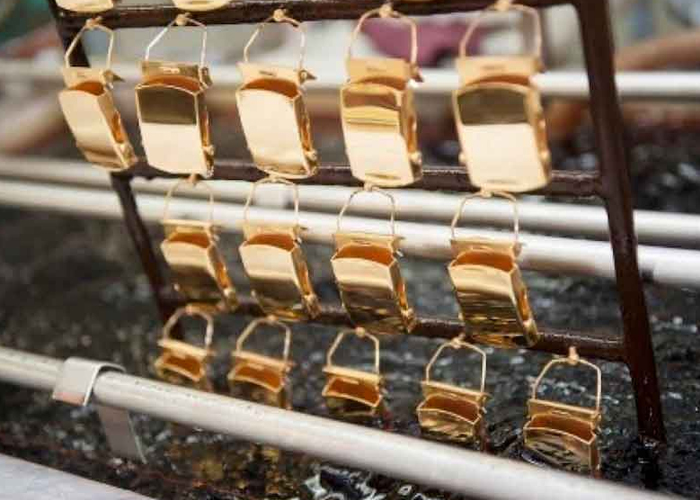

Rotational Fixtures

These fixtures rotate the parts during plating to ensure even coverage, especially useful for complex geometries.

Know More

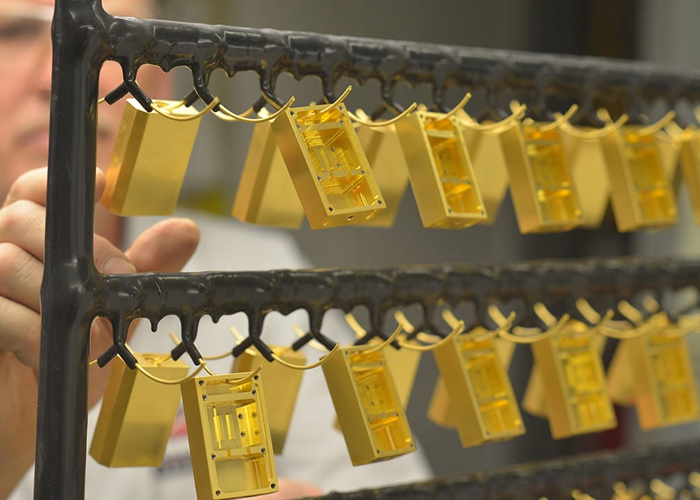

Rack Fixtures

Used for larger batches of small parts, allowing multiple items to be plated simultaneously.

Know More

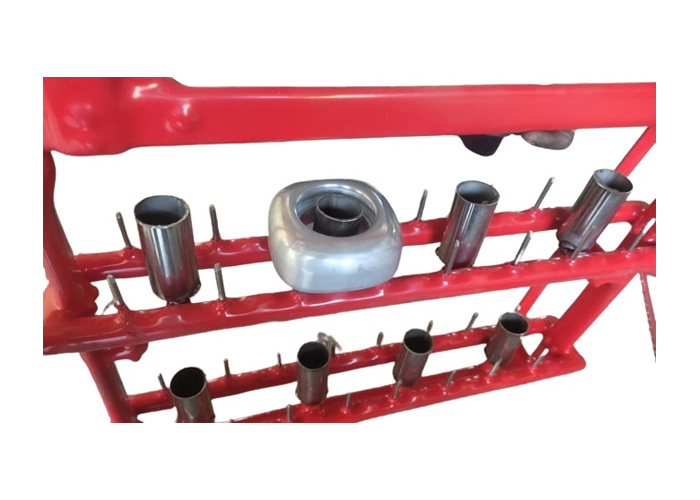

Anodizing plating fixture

The technique of electroplating involves coating one metal on another metal surface, whereas anodizing involves thickening the naturally occurring oxide layer on the surface of the metal surfaces.

Know More

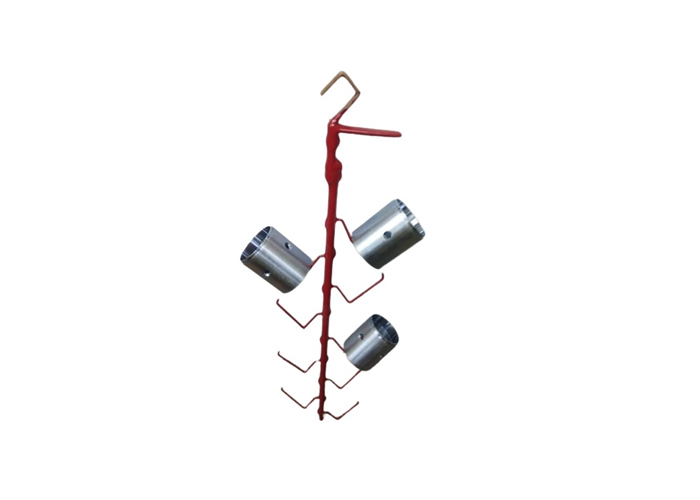

Single Stem Fixtures

Optimize your plating setup with our efficient single stem fixtures for precise and reliable performance. Designed for easy adjustment and durability, they ensure consistent quality and streamline your plating processes.

Know More

Importance of Electroplating Fixtures

Uniform Coating: Properly designed fixtures ensure that the components are evenly exposed to the plating solution, resulting in a uniform coating.

Efficiency: Fixtures help in efficiently utilizing the plating bath by optimizing the positioning of the parts, which can reduce waste and improve throughput.

Quality Control: They minimize defects such as uneven thickness, rough surfaces, and incomplete coverage by ensuring stable and precise positioning.

Protection: Fixtures protect delicate parts from damage during the plating process.

Design Considerations

Conductivity: Ensuring proper electrical contact between the fixture and the part is crucial for uniform plating.

Chemical Resistance: Fixtures must withstand the chemical environment of the plating bath without degrading.

Mechanical Stability: Fixtures should hold the parts securely without causing damage or deformation.

Ease of Use: Design should allow for easy loading and unloading of parts to minimize handling time.

Maintenance of Electroplating Fixtures

Regular Cleaning: Fixtures should be cleaned regularly to remove any build-up of plating material and ensure proper electrical contact.

Inspection: Regular inspection for wear and tear to prevent any damage to parts during plating.

Replacement: Timely replacement of worn-out fixtures to maintain plating quality.
